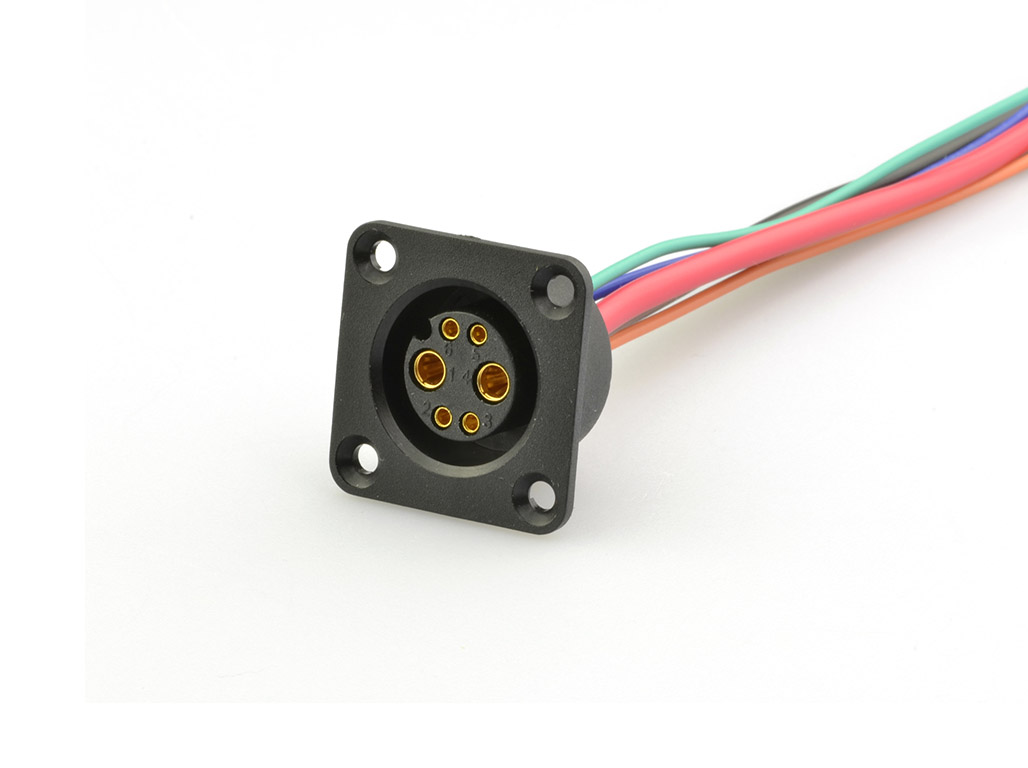

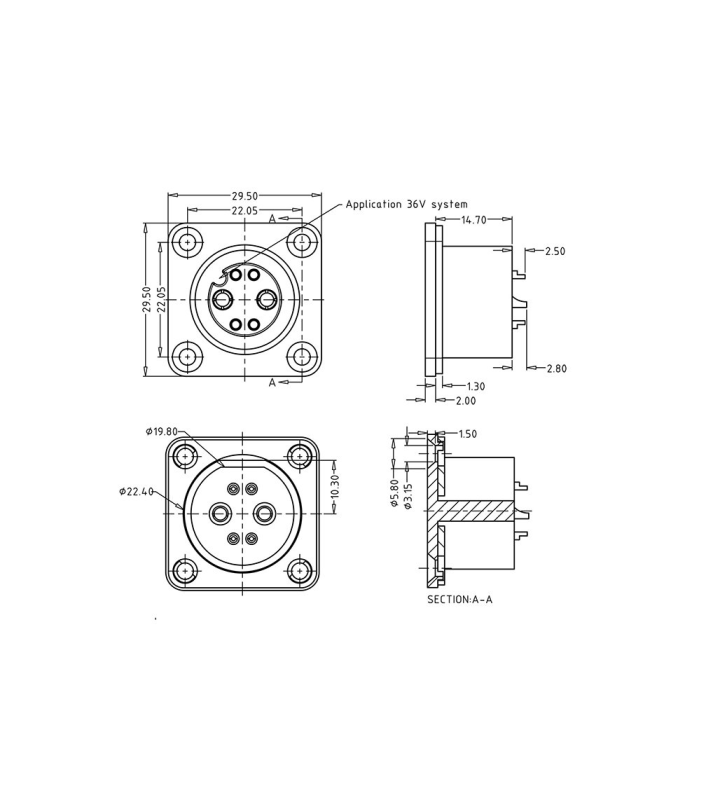

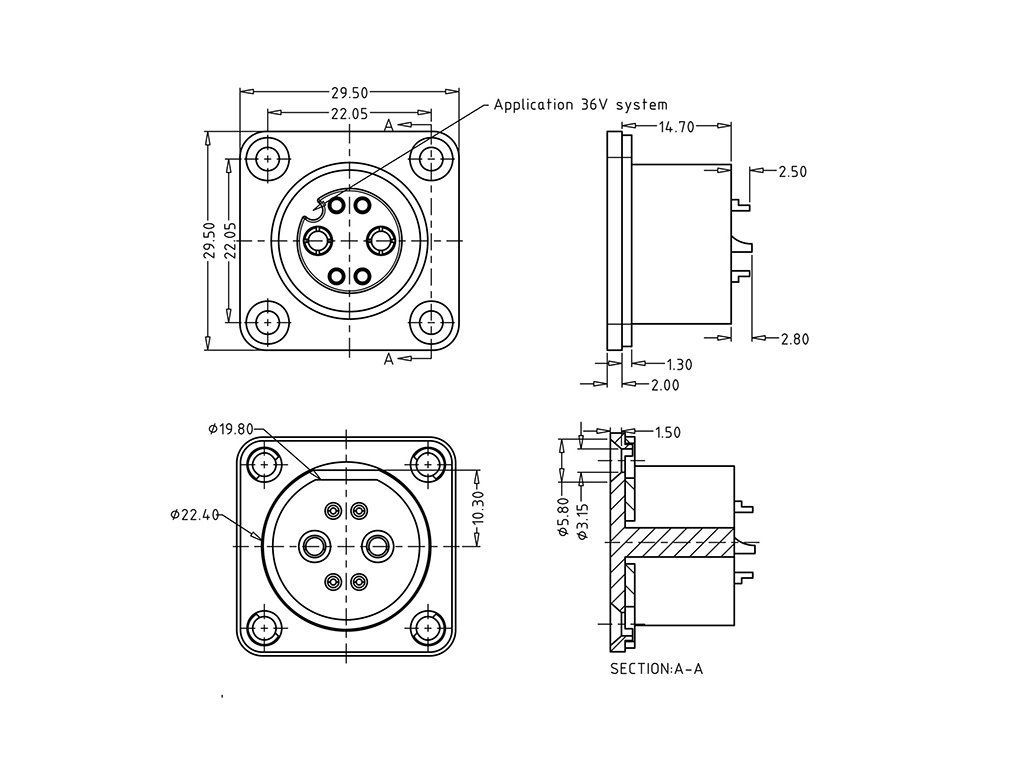

Battery female panel mount connector 36V code, no locking (push-on)
Only for use in 36V applications
Z624CM C 05 D1 0150
Ask for a quote
Add favourite
General Characteristics
|
Number of contacts
|
6 (2+4)
|
|
Connector shape
|
Panel mount
|
|
Gender
|
Female
|
|
Color
|
Black
|
|
Upper temperature
|
80 °C
|
|
Lower temperature
|
-25 °C
|
|
IP Protection
|
IP67
|
|
Mating cycles
|
3000 Times
|
|
Connector diameter
|
19 mm
|
|
Cable Length
|
Single wires 150 mm
|
|
Wire section
|
2 x 2,0 + 4 x 0,34 mm²
|
|
Remark
|
Other cable length/type on request
|
Electrical Parameters
|
Rated current
|
45 / 5 A
|
|
Rated voltage
|
48 V AC / 60 V DC
|
|
Max. insulation resistance
|
≥20 MΩ
|
|
Max. contact resistance
|
≤10 mΩ
|
Material
|
Material of contact
|
Phosphor bronze
|
|
Contact plating
|
Gold over Nickel
|
