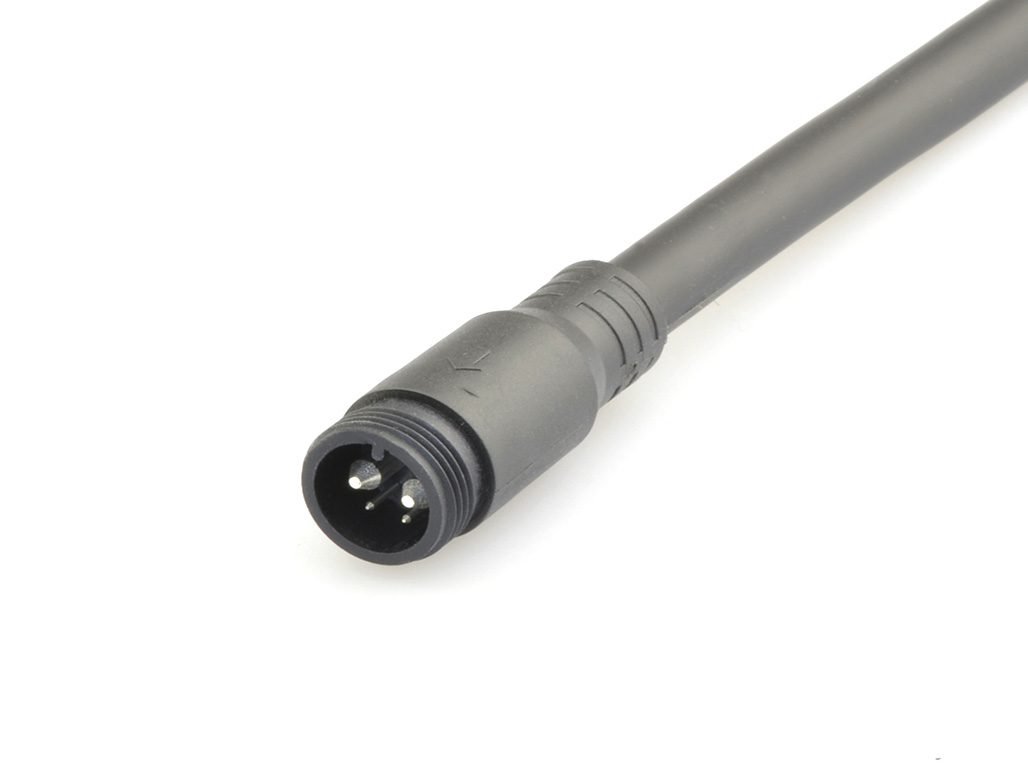

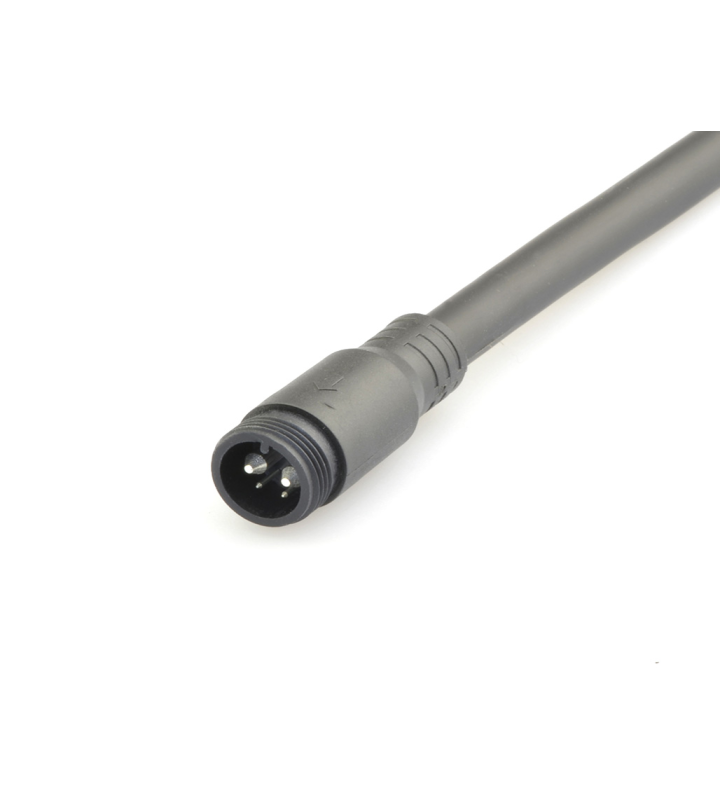

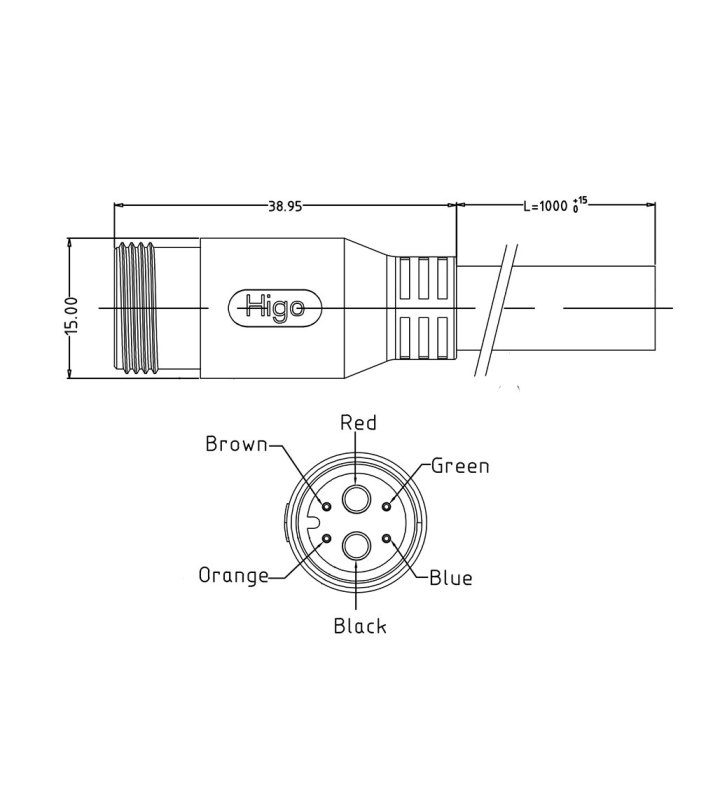

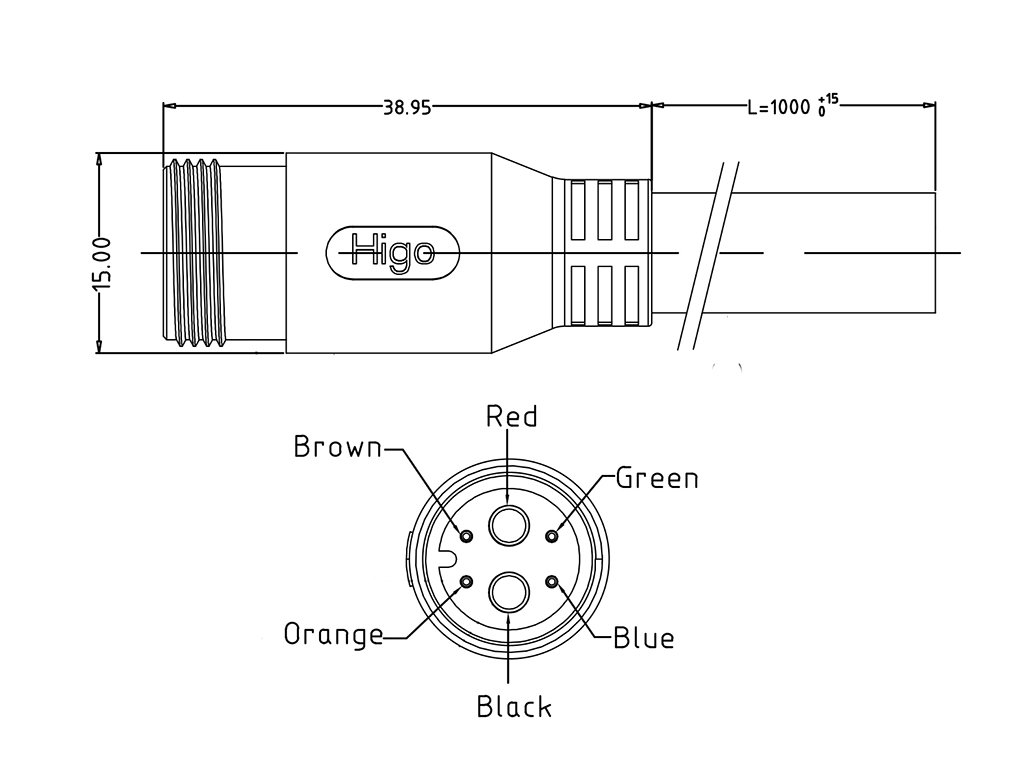

Male cable connector

L615AG P 00 DC 1000

Ask for a quote Add favourite

General Characteristics

Number of contacts 6(2+4)
Connector shape Plug
Gender Male
Color Black
Upper temperature 80 °C
Lower temperature -25 °C
Locking Screw locking
Protection degree IP67
Mating cycles (times) 200 Mating times
Connector diameter 15 mm
Fitting length 77 mm
Cable Length 1000 mm
Wire section 2 x 4,0 + 4 x 0,2 mm²
Remark Other cable length/type on request

Electrical Parameters

Rated current 40 / 2 A
Rated voltage 48 V AC / 60 V DC
Max. insulation resistance (MΩ) ≥20 MΩ
Max. contact resistance (MΩ) ≤10 MΩ

Material

Material jacket PVC
Insulation wire PTFE
Material of contact Brass
Contact plating Gold over Nickel
