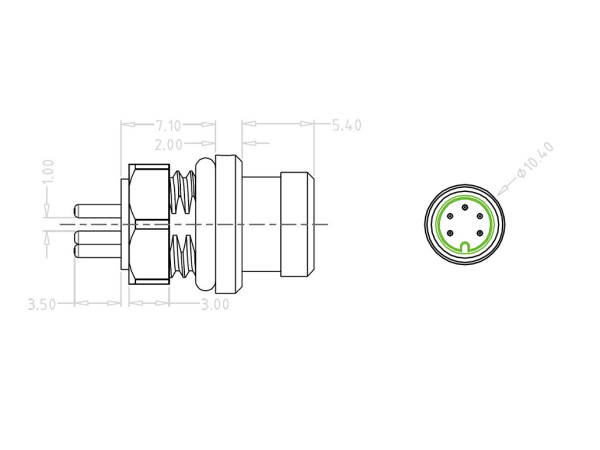

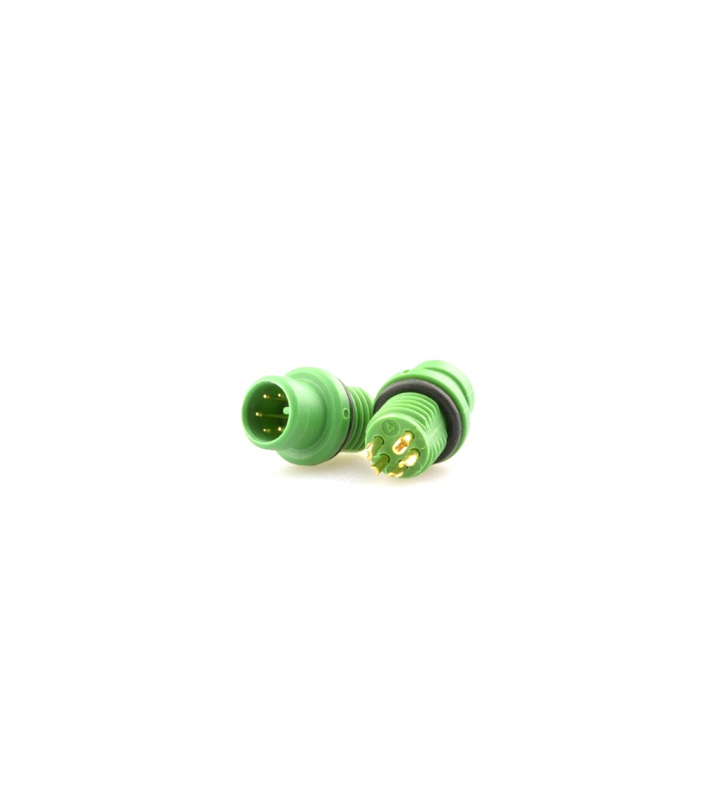

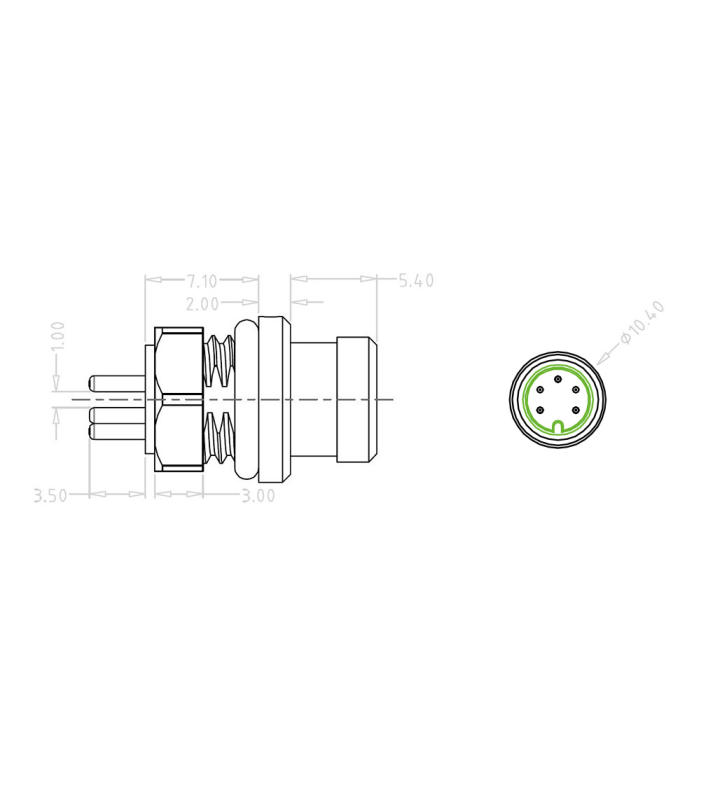

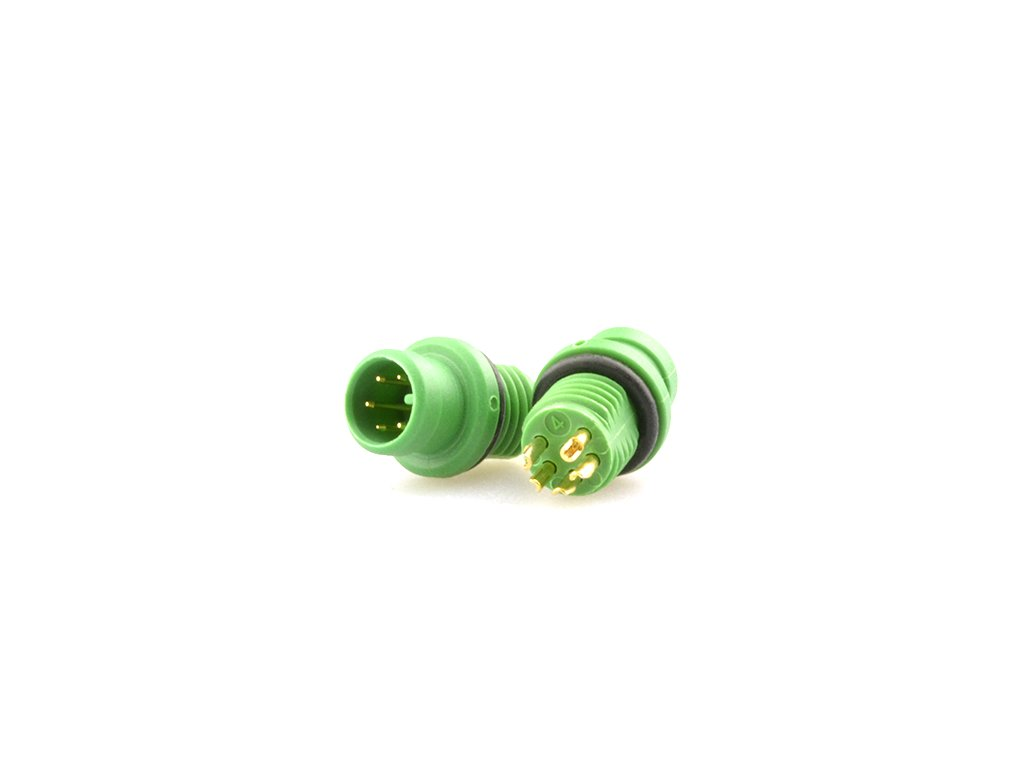

Mini B Male panel mount connector
Solder cup contacts
Z509BG C 02 00 0000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 5 |
|---|---|
| Connector shape | Panel mount |
| Gender | Male |
| Color | Green |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP66 |
| Mating cycles | 200 Times |
| Connector diameter | 9 mm |
| Fitting length | 42 mm |
| Wire section | 0,14 / 0,2 mm² |
| Terminal type | Solder Cup contacts |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Material of contact | Copper Alloy |
|---|---|
| Contact plating | Gold over Nickel |
