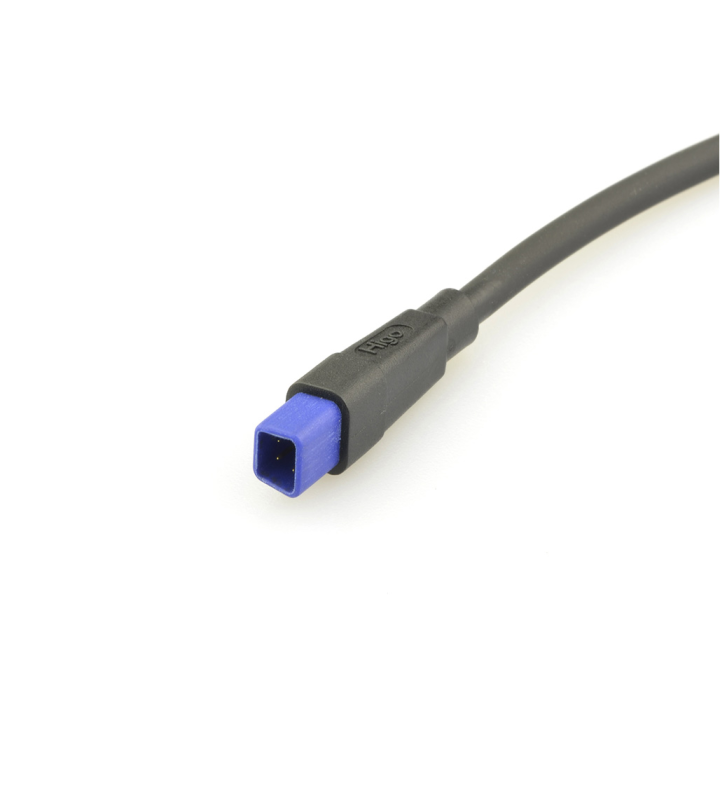

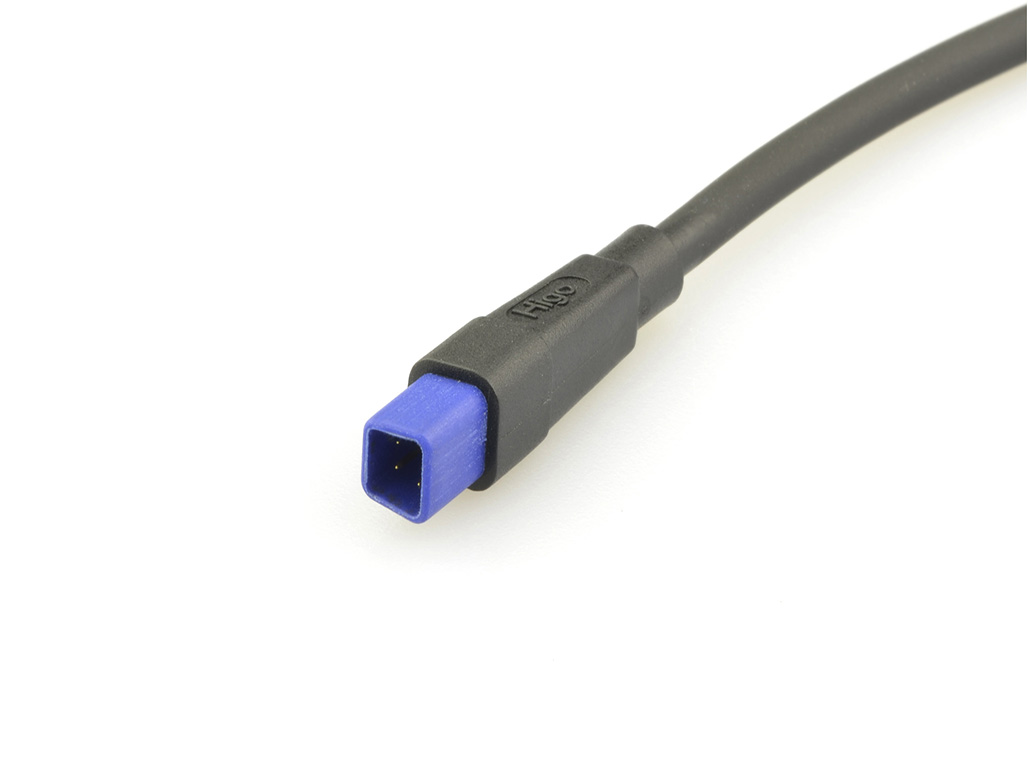

Mini F male cable connector

Z409FG P 00 A2 1000

Ask for a quote Add favourite

General Characteristics

Number of contacts 4
Connector shape Plug
Gender Male
Color Blue
Upper temperature 80 °C
Lower temperature -25 °C
Locking Push-on (no locking)
Protection degree IP66/IP67
Mating cycles (times) 200 Mating times

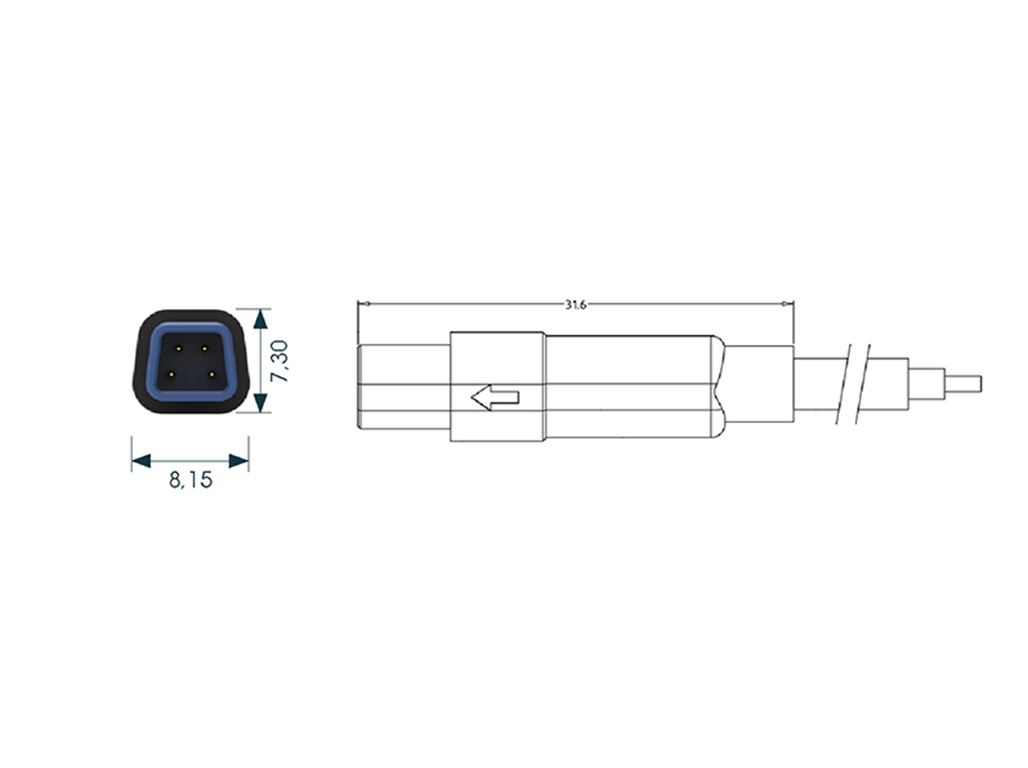

Connector diameter see drawing mm
Fitting length 54 mm
Cable Length 1000 mm
Cable diameter 3.7 mm
Wire section 0.14 mm²

Electrical Parameters

Rated current 2 A
Rated voltage 48 V AC / 60 V DC
Max. insulation resistance (MΩ) ≥20 MΩ
Max. contact resistance (MΩ) ≤10 MΩ

Material

Material jacket PVC
Insulation wire PVC
Material of contact /

Variants

Article number Material jacket Insulation wire
Z409FG P 00 AY 1000 TPU Teflon
