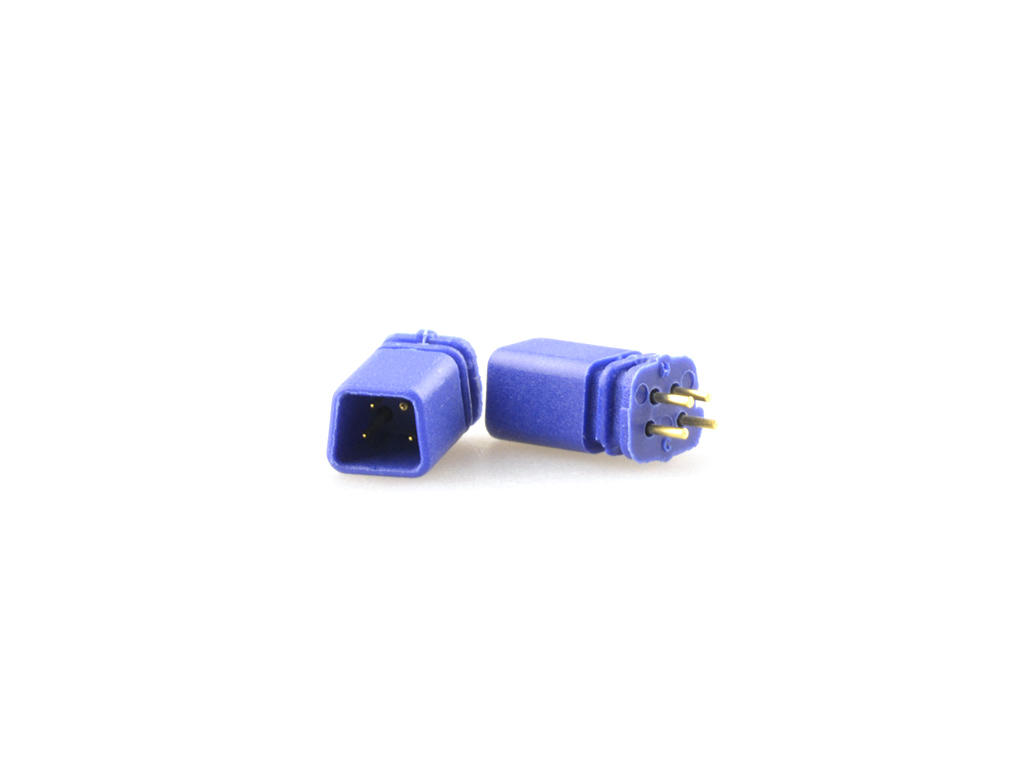

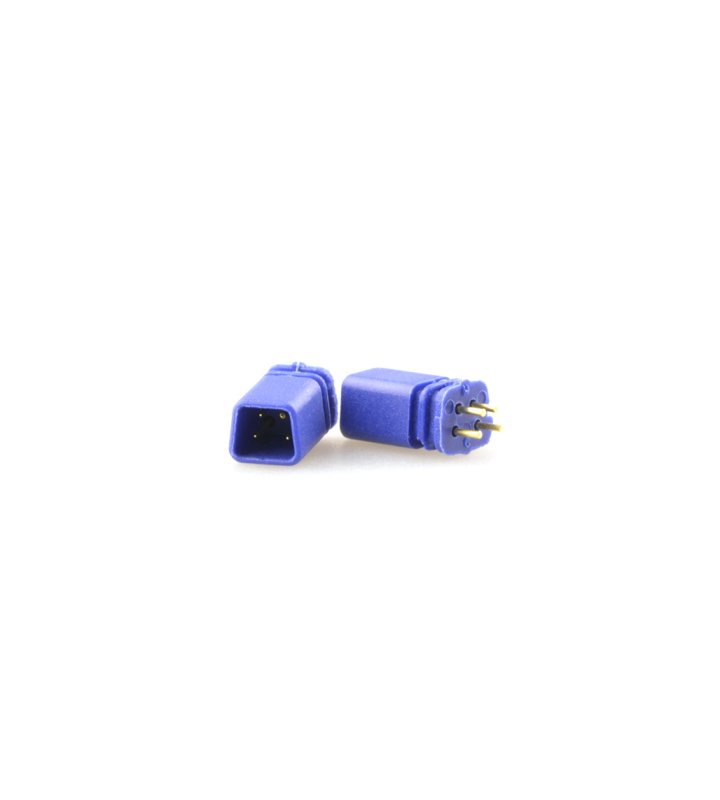

Mini F male panel mount connector
Straight PCB contacts
Z409FG C 04 00 0000
Ask for a quote Add favouriteGeneral Characteristics
Number of contacts | 4 |
---|---|
Connector shape | Panel mount |
Gender | Male |
Color | Blue |
Upper temperature | 80 °C |
Lower temperature | -25 °C |
Locking | Push-on (no locking) |
Protection degree | IP66/IP67 |
Mating cycles (times) | 200 Mating times |

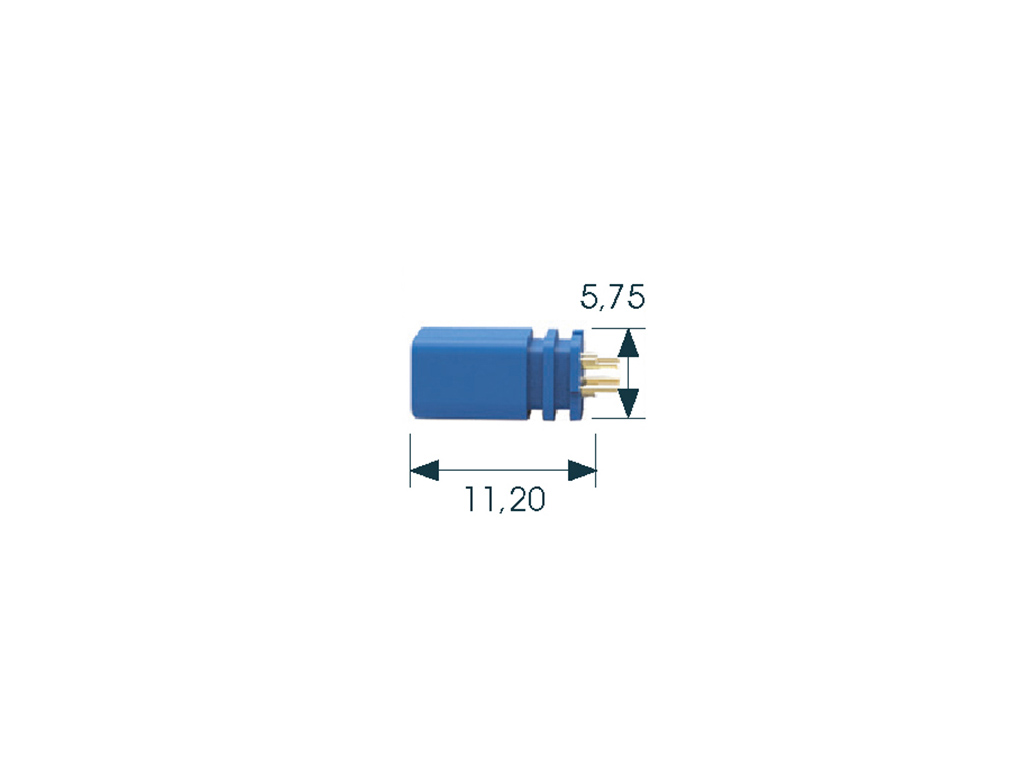

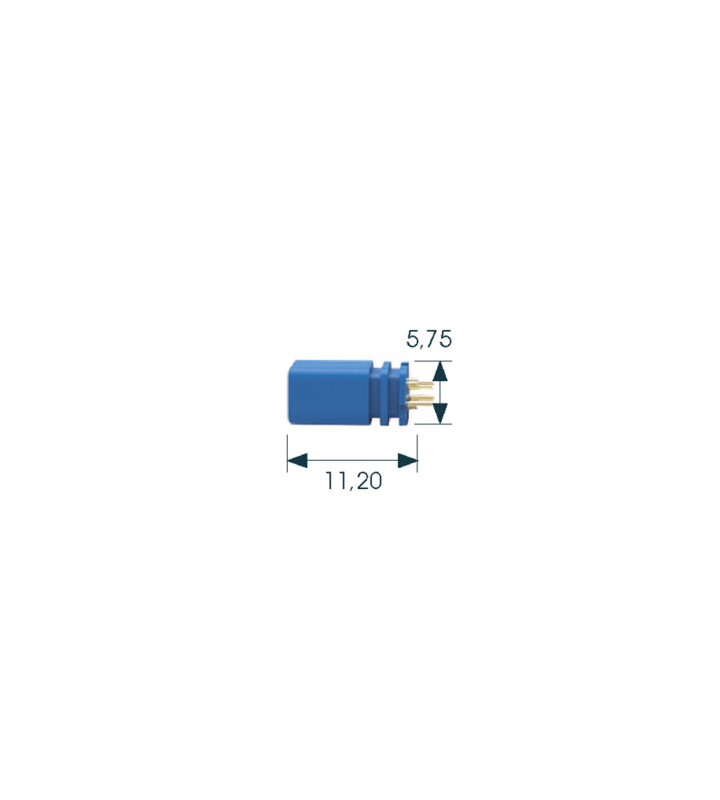

Connector diameter | 5,75 x 6,43 mm |
Terminal type | Straight PCB contacts |
Remark | Other cable length/type on request |
Electrical Parameters
Rated current | 2 A |
---|---|
Rated voltage | 48 V AC / 60 V DC |
Max. insulation resistance (MΩ) | ≥20 MΩ |
Max. contact resistance (MΩ) | ≤10 MΩ |
Material
Material of contact | Copper Alloy |
---|---|
Contact plating | Gold over Nickel |
