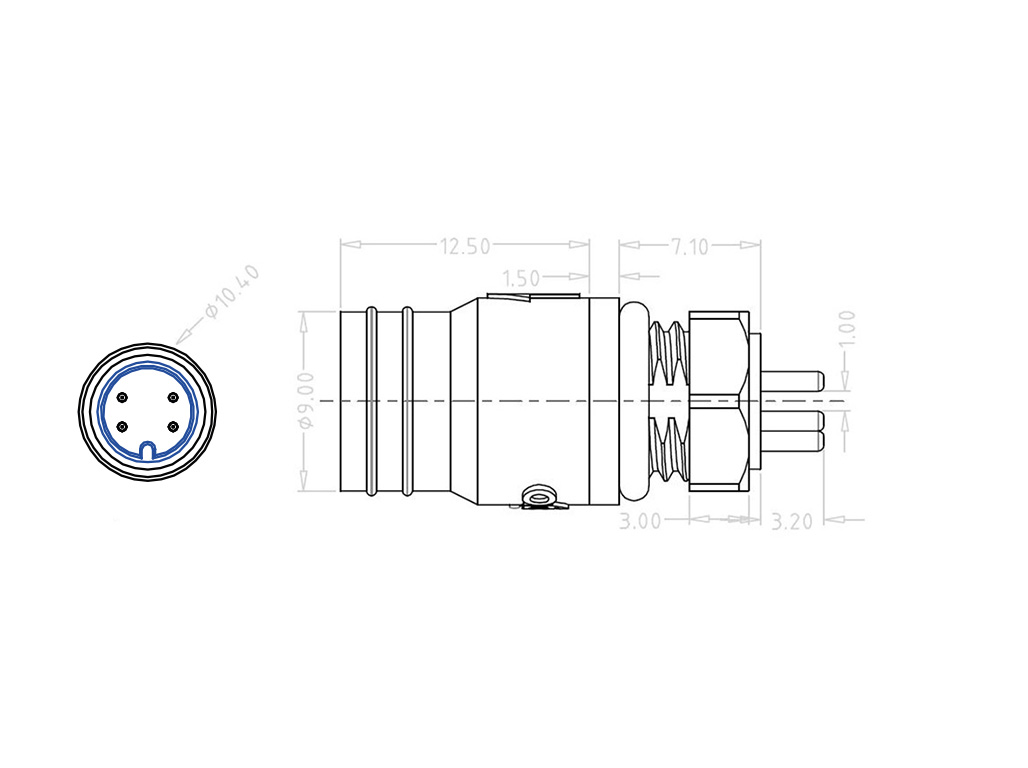

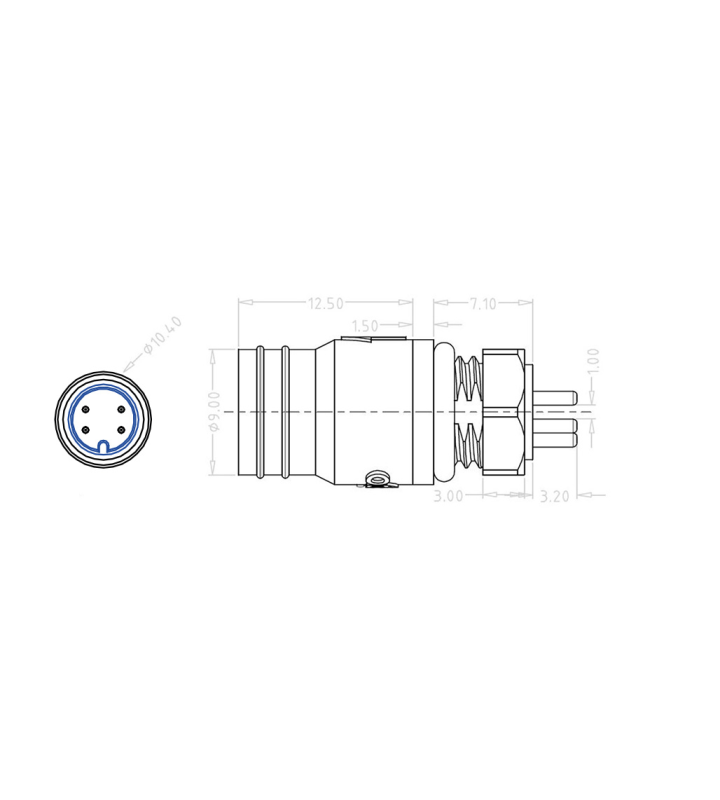

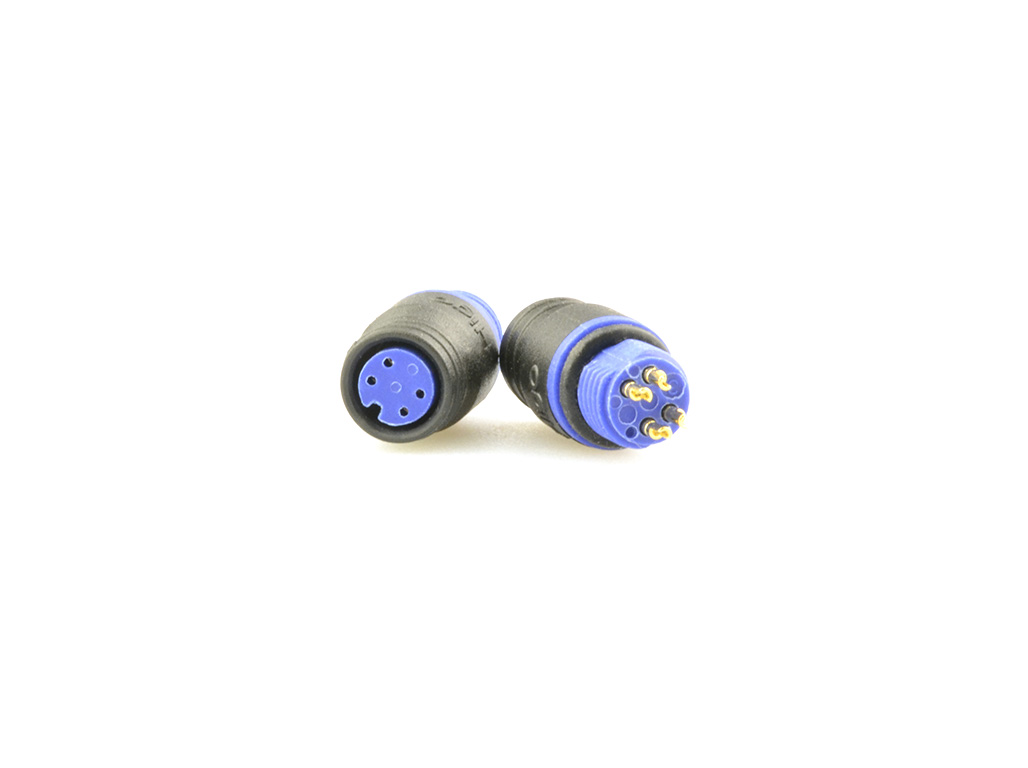

Mini B Female panel mount connector
Solder cup contacts
Z409BM C 02 00 0000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 4 |
|---|---|
| Connector shape | Panel mount |
| Gender | Female |
| Color | Blue |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| IP Protection | IP66 |
| Mating cycles | 200 Mating times |
| Connector diameter | 9 mm |
| Fitting length | 42 mm |
| Wire section | 0,14 /0,2 mm² |
| Terminal type | Solder Cup contacts |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 MΩ |
Material
| Material of contact | Copper Alloy |
|---|---|
| Contact plating | Gold over Nickel |
