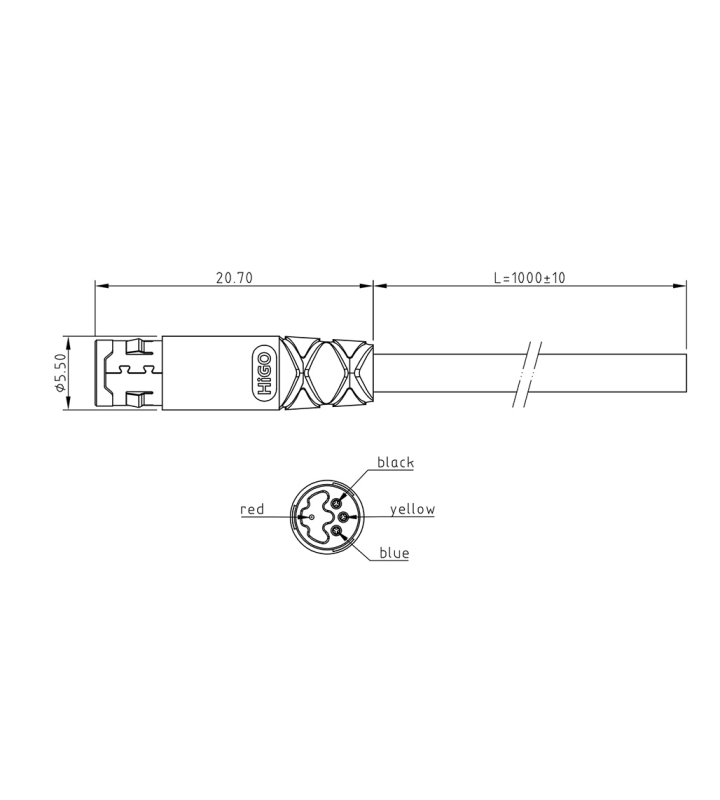

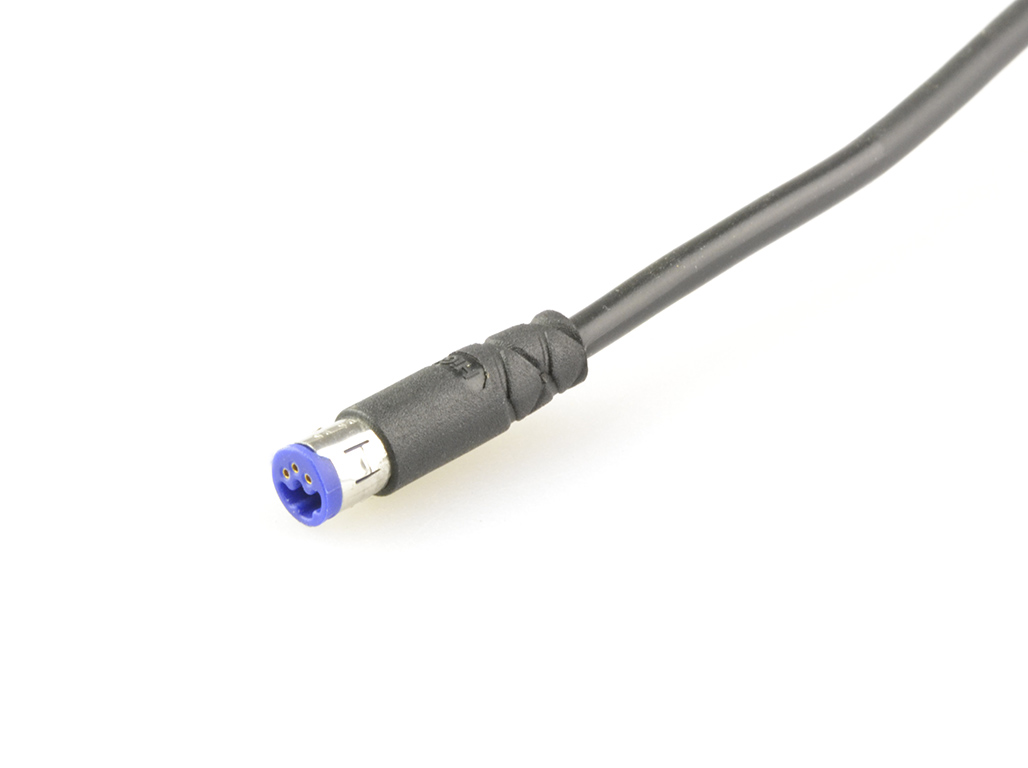

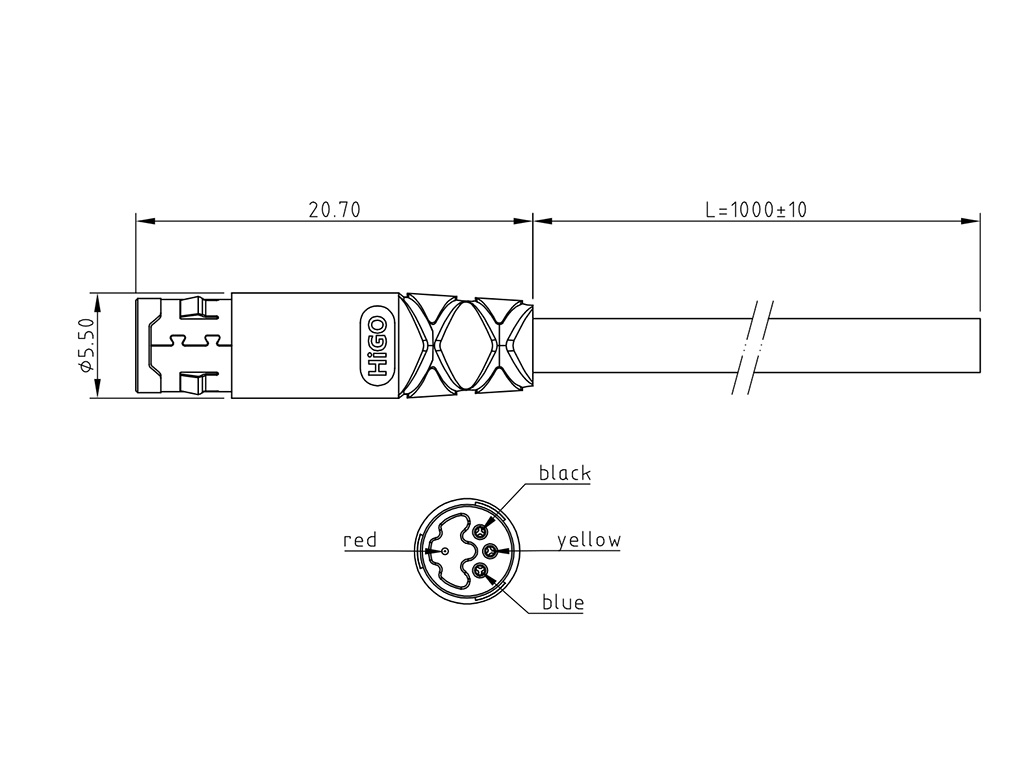

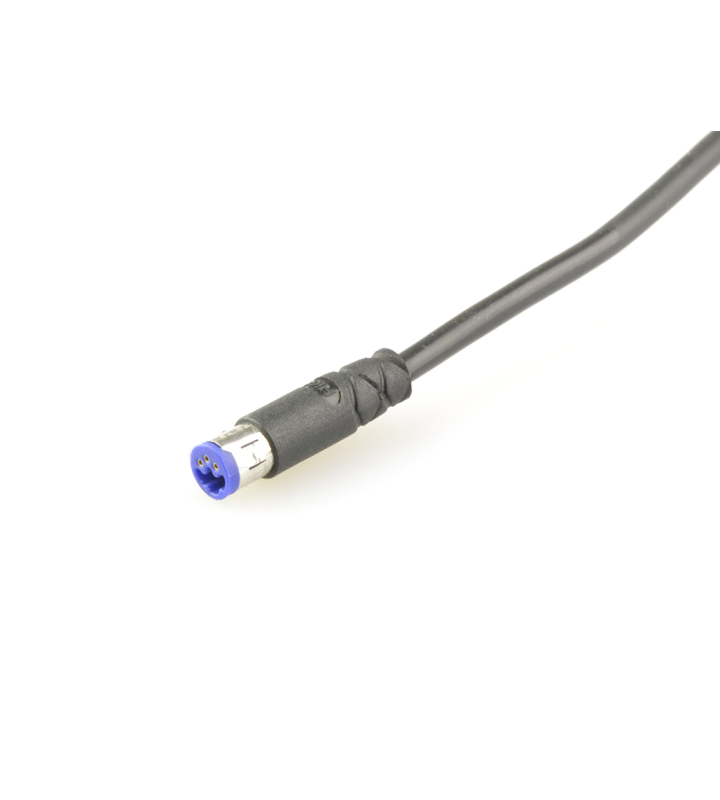

Micro X female cable connector
Z405XM P 00 GT 1000
Ask for a quote Add favouriteGeneral Characteristics
Number of contacts | 4 |
---|---|
Gender | Female |
Color | Blue |
Upper temperature | 80 °C |
Lower temperature | -25 °C |
Locking | Push-on (no locking) |
Protection degree | IP67 |
Mating cycles (times) | 200 Mating times |
Connector diameter | 5.5 mm |
Fitting length | 36 mm |
Cable Length | 1000 mm |
Cable diameter | 2.8 mm |
Wire section | 4 x 0,08 mm² |
Terminal type | IP67 |
Remark | Other cable length/type on request |
Electrical Parameters
Rated current | 2 A |
---|---|
Rated voltage | 48 V AC / 60 V DC |
Max. insulation resistance (MΩ) | ≥20 MΩ |
Max. contact resistance (MΩ) | ≤10 MΩ |
Material
Material jacket | PVC |
---|---|
Insulation wire | FEP |
Material of contact | Copper Alloy |
Contact plating | Gold over Nickel |
