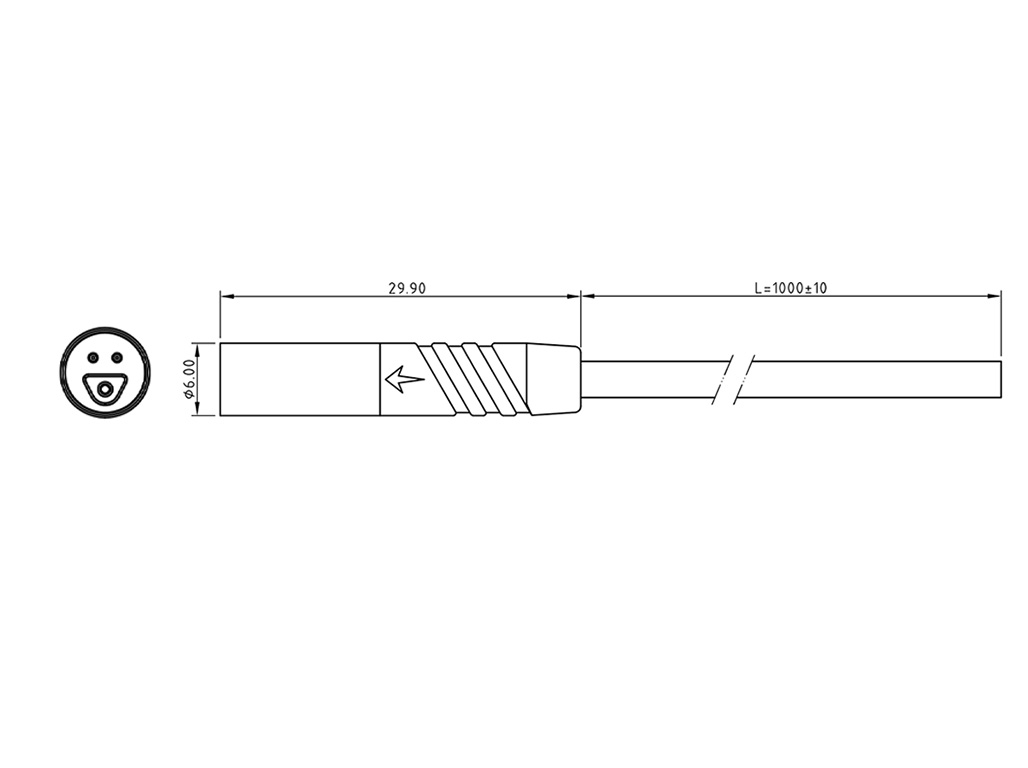

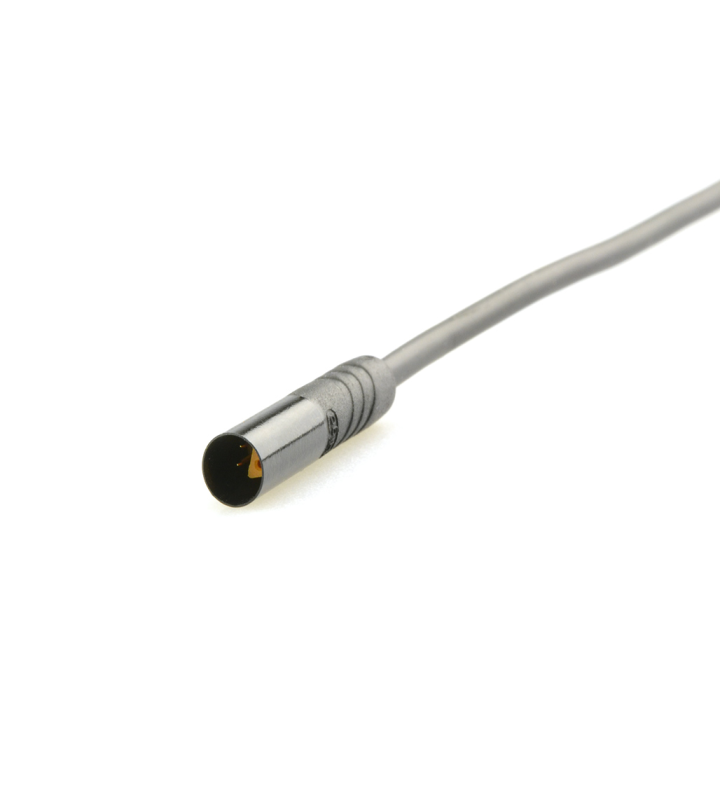

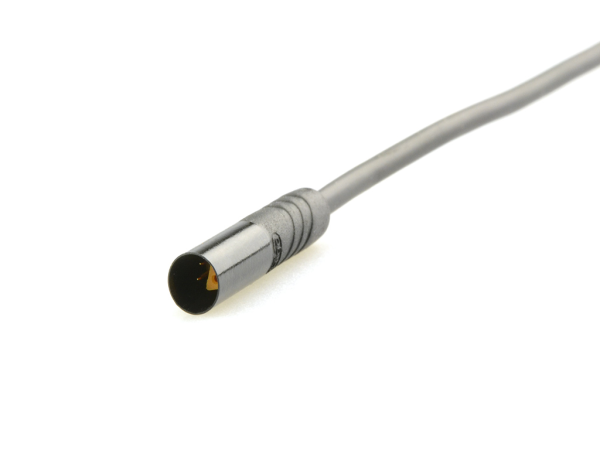

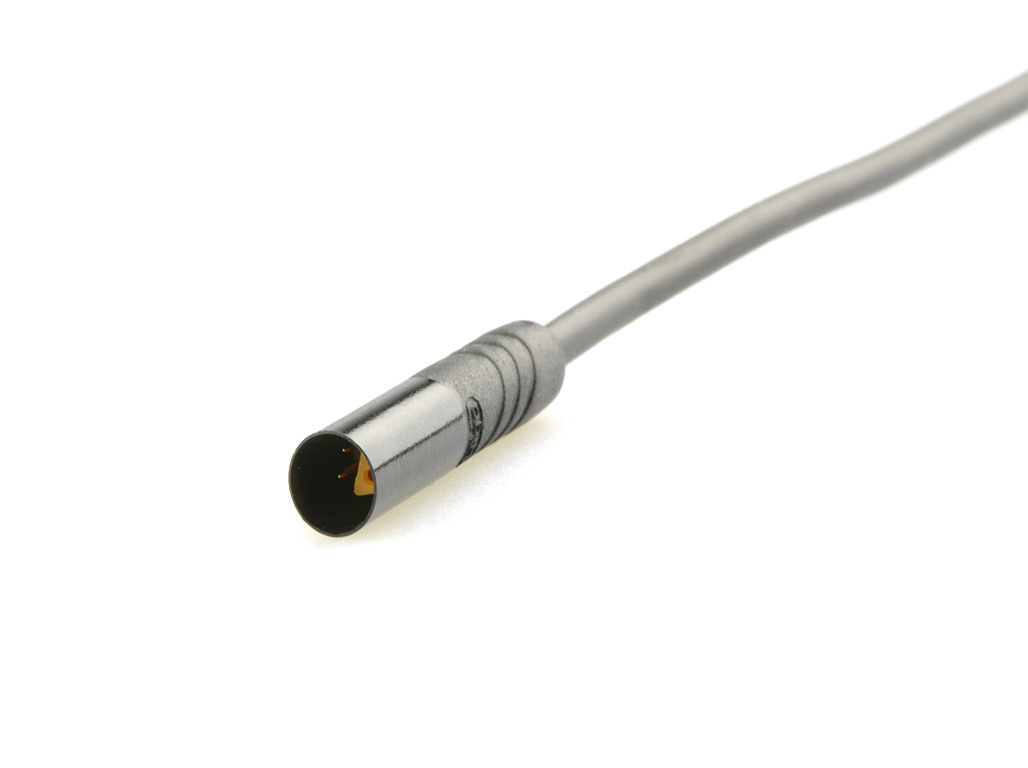

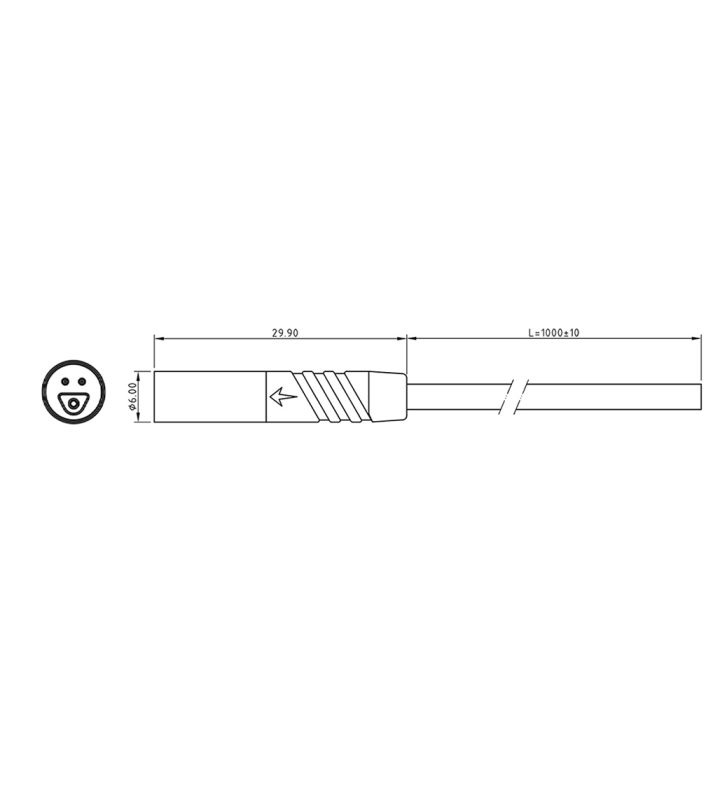

Micro Q male plug connector
Z306QG P 00 FG 1000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 3 |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Color | Yellow |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Mating cycles | 50 Mating times |
| Connector diameter | 6 mm |
| Fitting length | 50 mm |
| Cable Length | 1000 mm |
| Cable diameter | 2.8 mm |
| Wire section | 3 x 0,14 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 MΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | FEP |
| Material of contact | Copper Alloy |
| Contact plating | Gold over Nickel |
