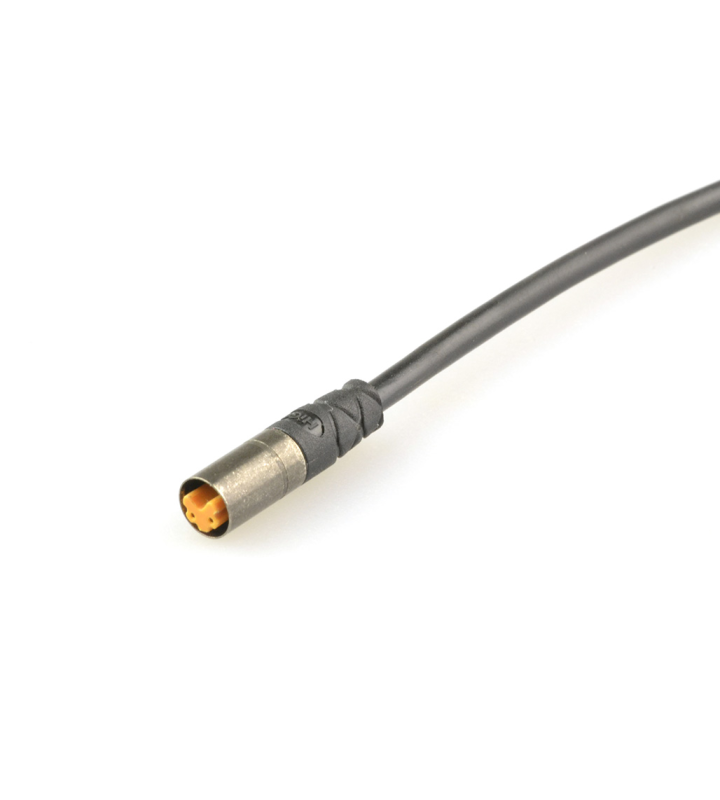

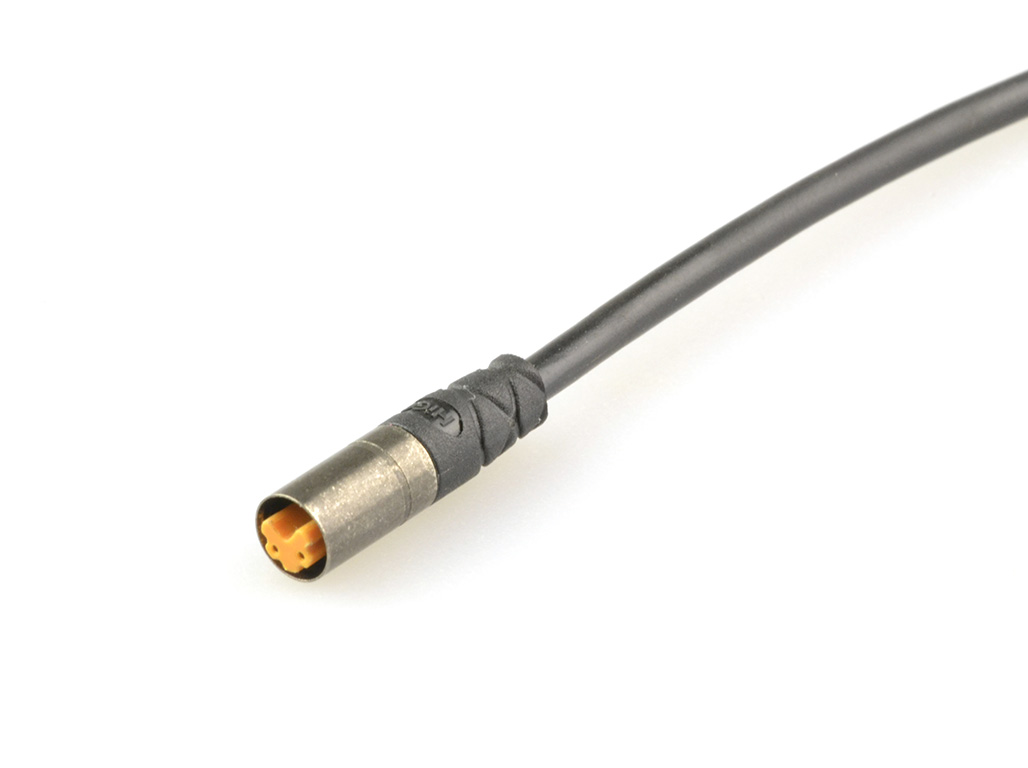

Micro X male cable connector

Z305XG P 00 FG 1000

Ask for a quote Add favourite

General Characteristics

Color Yellow
Mating cycles (times) 200 Mating times
Remark Other cable length/type on request
Terminal type IP67
Gender Male
Protection degree IP67

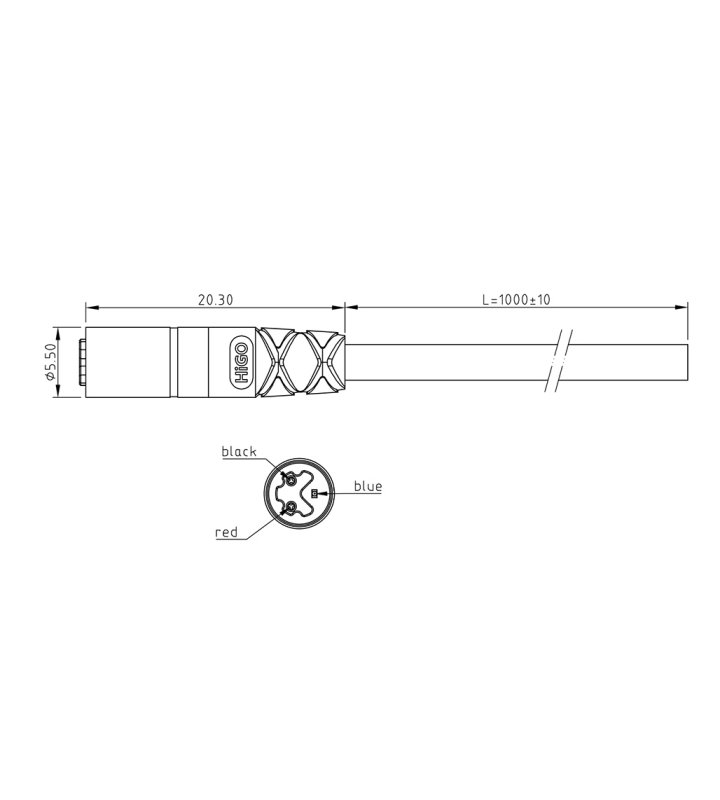

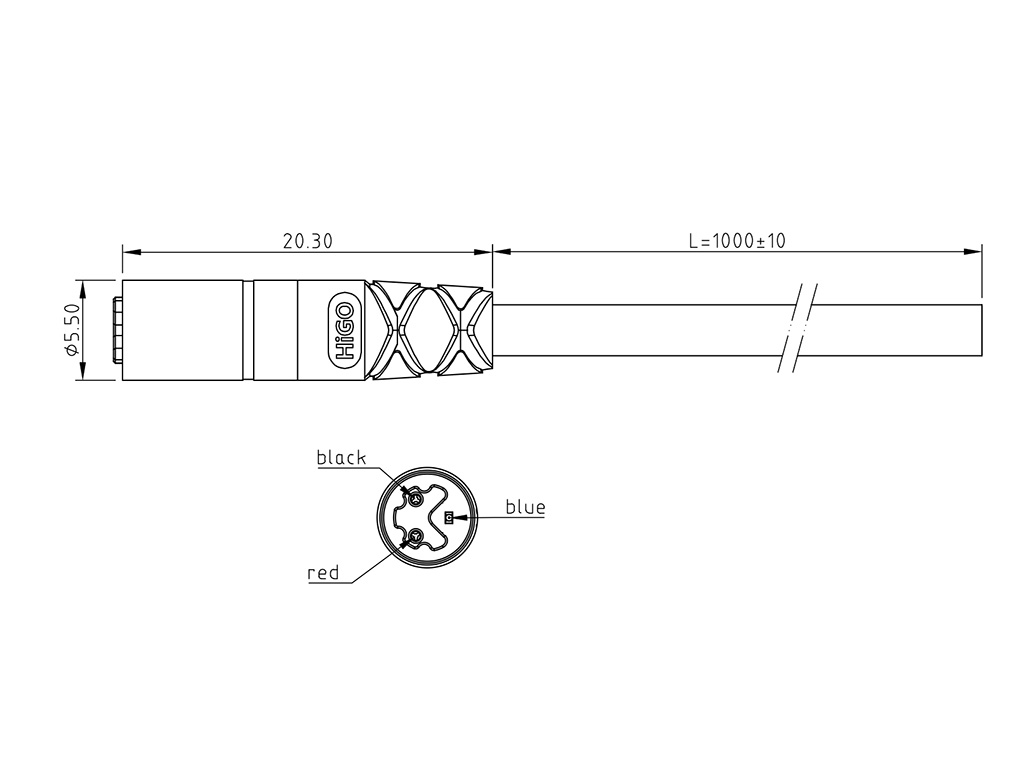

Connector diameter 5.5 mm
Wire section 3 x 0,14 mm²
Cable Length 1000 mm
Cable diameter 2.8 mm
Locking Push-on (no locking)
Fitting length 36 mm
Lower temperature -25 °C
Number of contacts 3
Upper temperature 80 °C

Electrical Parameters

Max. insulation resistance (MΩ) ≥20 MΩ
Max. contact resistance (MΩ) ≤10 MΩ
Rated voltage 48 V AC / 60 V DC
Rated current 2 A

Material

Contact plating Gold over Nickel
Insulation wire FEP
Material jacket PVC
Material of contact Copper Alloy
