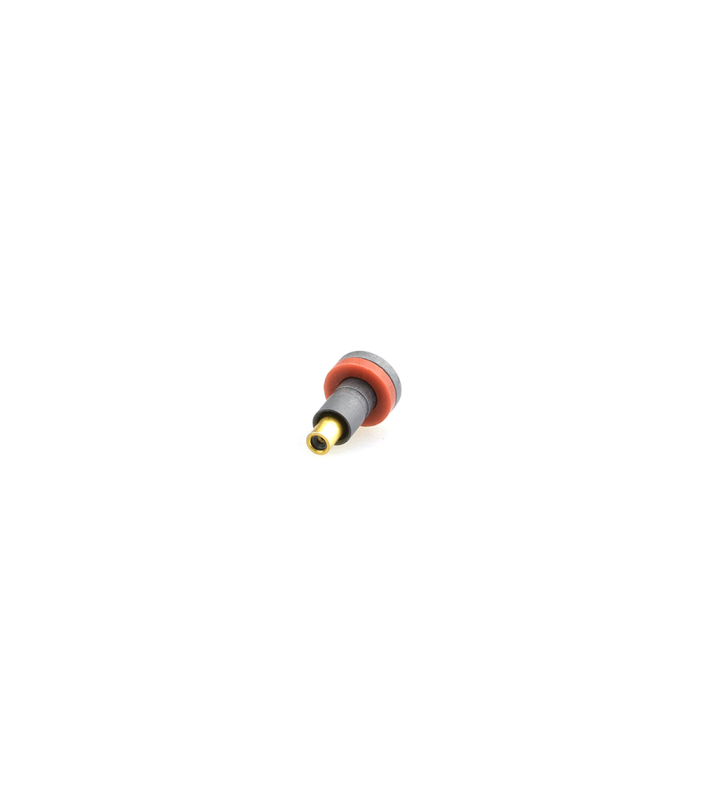

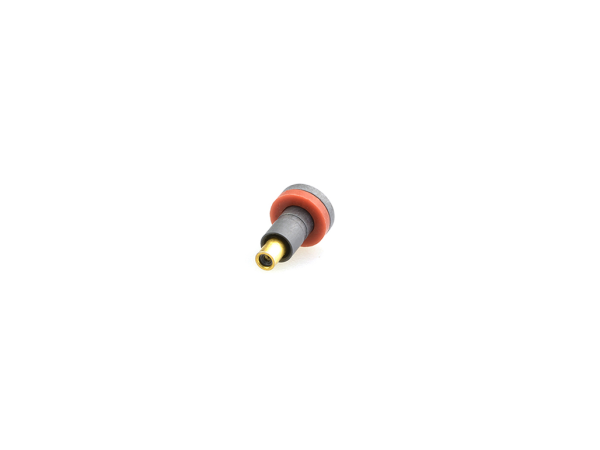

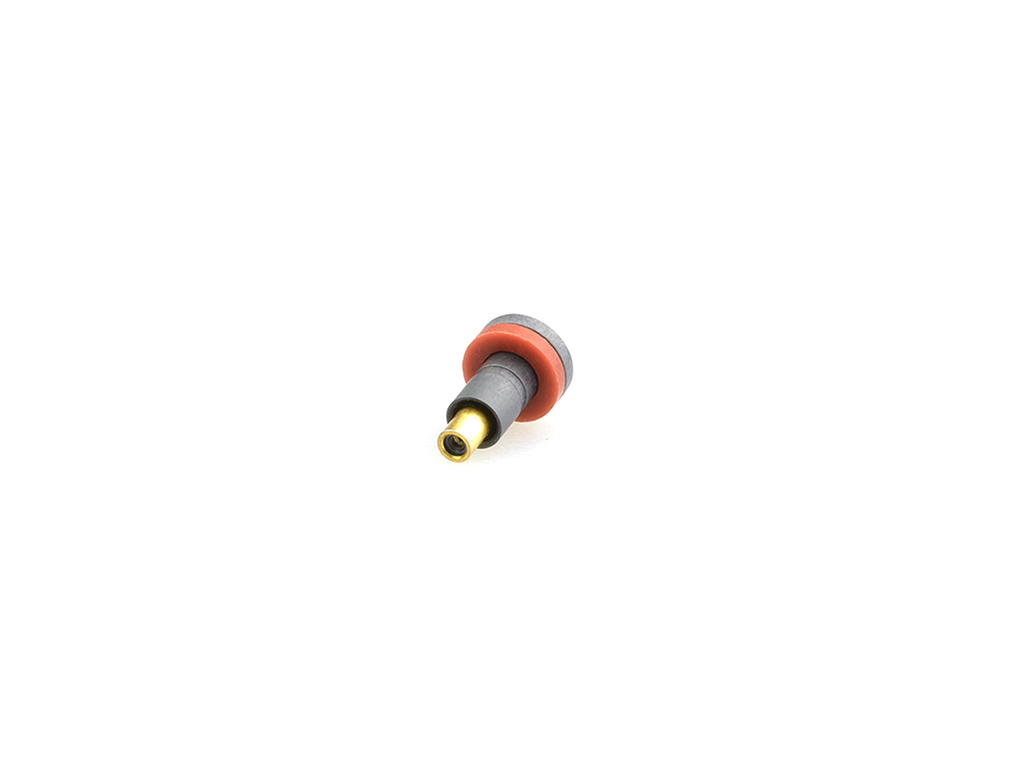

Micro A female panel mount connector
Z205AM R 04 00 0000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 2 |
|---|---|
| Connector shape | Rear panel mount |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| Locking | Push-on (no locking) |
| IP Protection | IP67 |
| Mating cycles | 200 Mating times |
| Connector diameter | 4,8 mm |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 MΩ |
Material
| Material of contact | Copper Alloy |
|---|---|
| Contact plating | Gold over Nickel |
