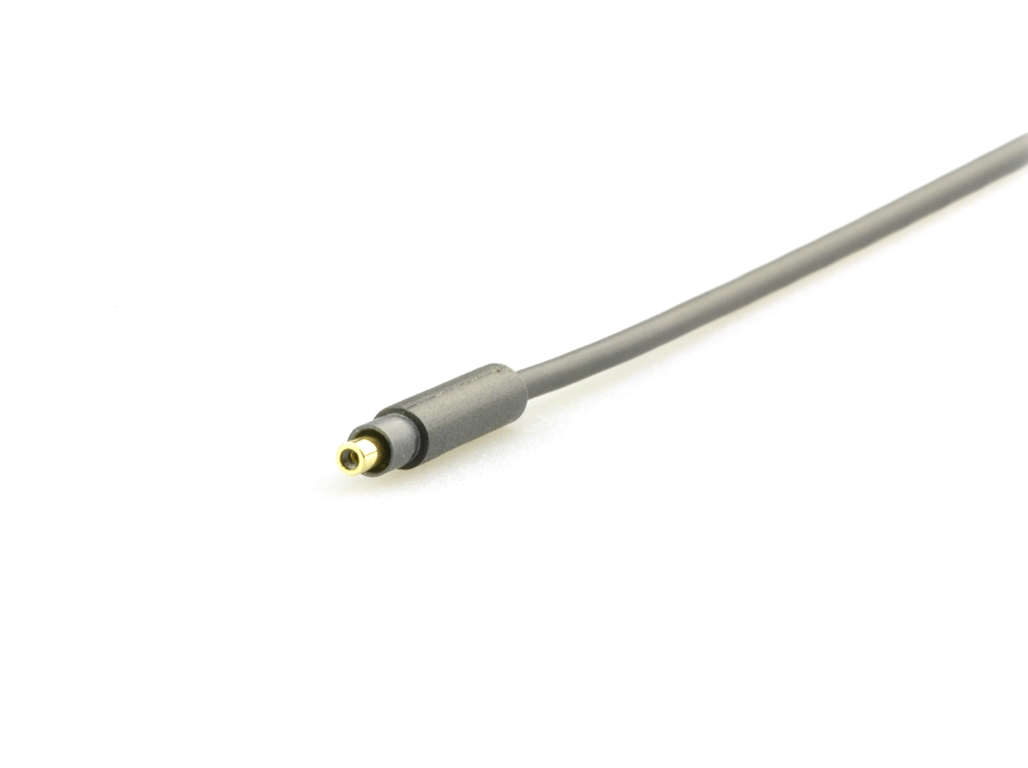

Micro A female plug connector
Z205AM P 00 AW 1000
Ask for a quote Add favouriteGeneral Characteristics
| Number of contacts | 2 |
|---|---|
| Connector shape | Plug |
| Gender | Female |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Mating cycles | 200 Times |

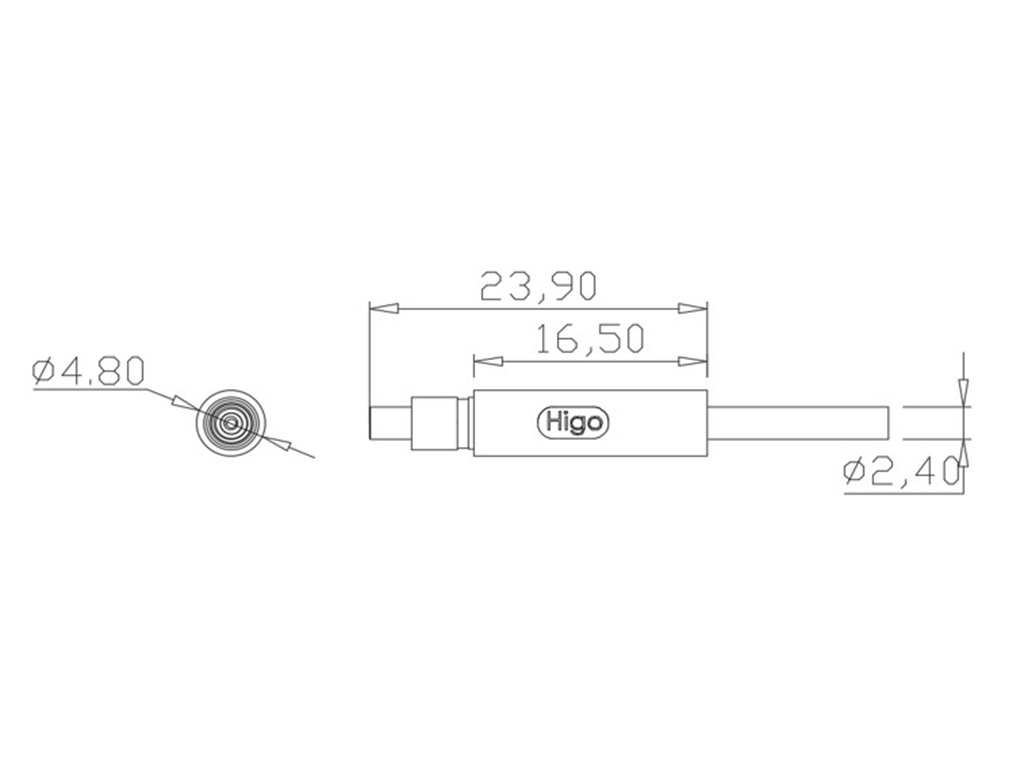

| Connector diameter | 4.8 mm |
| Fitting length | 35.4 mm |
| Cable Length | 1000 mm |
| Cable diameter | 2.4 mm |
| Wire section | 2 x 0,14 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Material jacket | TPU |
|---|---|
| Insulation wire | Teflon |
| Material of contact | Copper Alloy |
| Contact plating | Gold over Nickel |
