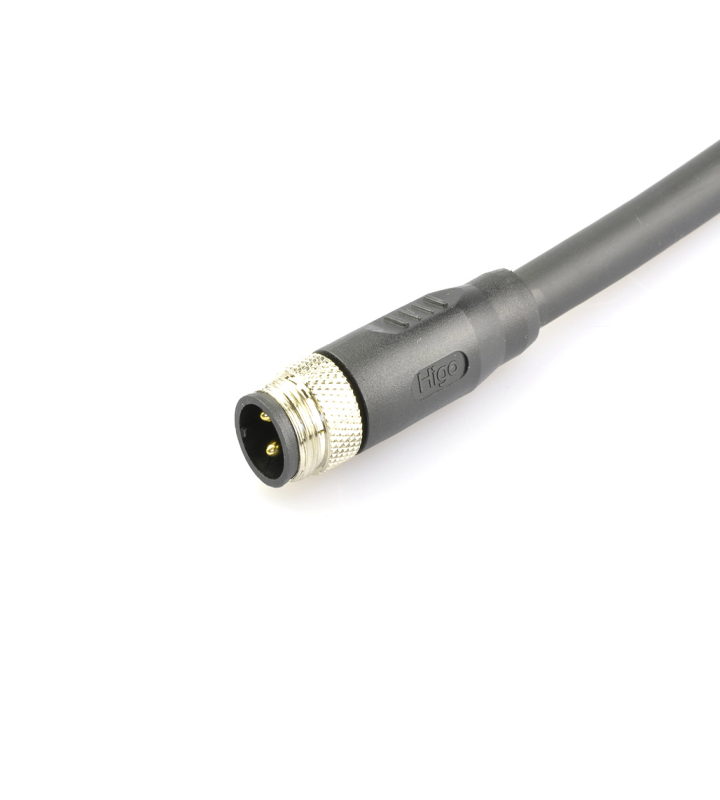

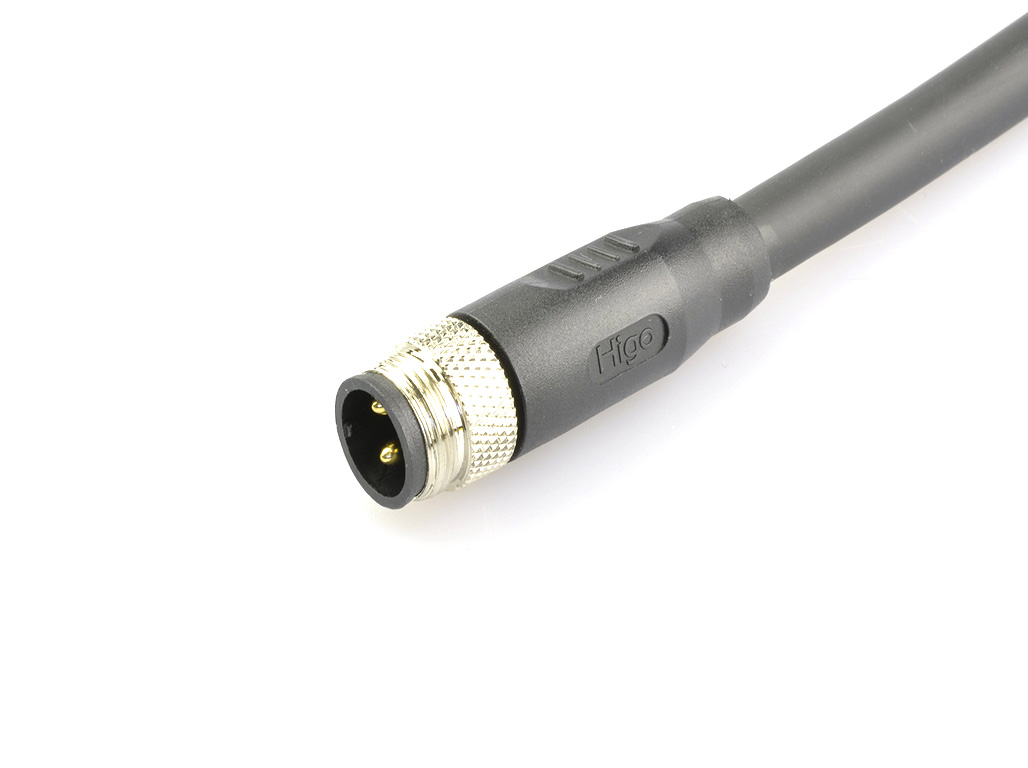

Male cable connector

L315AG P 01 B8 1000

Ask for a quote Add favourite

General Characteristics

Number of contacts 3
Connector shape Plug
Gender Male
Color Black
Upper temperature 80 °C
Lower temperature -25 °C
Locking Screw locking
Protection degree IP67
Mating cycles (times) 200 Mating times
Connector diameter 15 mm
Fitting length 90 mm
Cable Length 1000 mm
Cable diameter 9 mm
Wire section 3 x 4,0 mm²
Remark *Rated current: 35A, 2 power pin loaded 28A / 2A, 3 power pin loaded Other cable length/type on request

Electrical Parameters

Rated current *35 A
Rated voltage 48 V AC / 60 V DC
Max. insulation resistance (MΩ) ≥20 MΩ
Max. contact resistance (MΩ) ≤10 MΩ

Material

Material jacket PVC
Insulation wire Teflon
Material of contact Brass
Contact plating Gold over Nickel
